This article walks you through all the required steps to install your new Assure Lock/Andersen Touchscreen Deadbolt to your door. This guide will help you:
- Remove Existing Door Hardware
- Prepare Your Door
- Install your Assure Lock
- Program your Assure Lock
- Add your Assure Lock to your smart home system or Yale Access App*
*If purchased with Yale Smart Module or Bluetooth and Wi-Fi Upgrade kit
Before You Get Started
Remove the existing hardware: Remove the current lock and strike plate if there is one already installed on the door. PLEASE NOTE: A different screwdriver may be necessary to remove the existing hardware.
Double check door measurements: Enlarge existing top hole with 3/8" drill bit to accommodate the cable.
- Drill hole from both sides of door; approximately 1" deep from one side then completely through from the other side.
Keep the existing lock until installation and testing are complete.
What You Need
The following is a list of everything you need to begin installing this lock. Verify that all of these parts were included in the packaging:
- Exterior Touchscreen
- Interior Side of Lock
- Battery Cover
- Mounting Plate
- 4 AA Batteries
- 2x Small Machine Screws
- 1x Self Tap Screw
- 2x PH Screws
- Smart Module*
Handle Kit
- Strike Plate
- Allen Key
- 2x Levers
- Adjustable Deadbolt Latch
- 2x Screws
- 3x Spacers
What You’ll Need to Provide:
- Standard Phillips Head Screwdriver
Installation Steps
Install the Assure Lock/Andersen Touchscreen :
Step 1. Prepare the Interior Escutcheon:
Step 2. Select the Correct Spacer

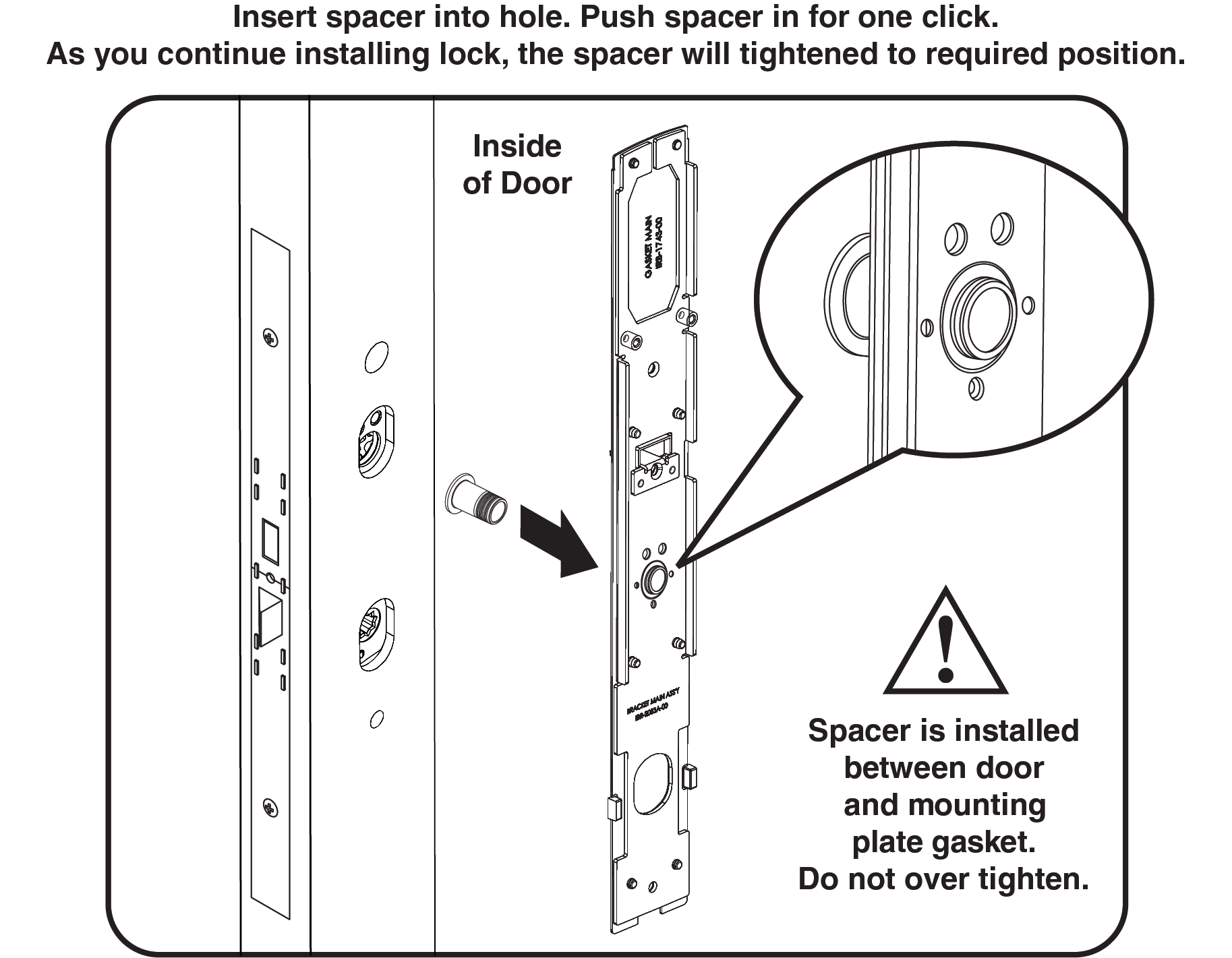

Step 3. Install the Spacer
Step 4. Install the Touchscreen
Step 5. Install the Interior Mounting Plate
Step 6. Remove the Rubber Tab from Gasket
Step 7. DPS Position Adjustment
Step 8. Attach the Cable Assembly
Step 9. Install the Interior Escutcheon
Step 10. Install the Lever Spindle & Bushing
Step 11. Install Levers
Step 12. Installing DPS Accessory Magnet
Step 13. Install the Network Module*
Step 14. Install the Batteries & Cover
*Optional
Using the Lock
Follow the steps below to set up the Assure Lock/Andersen Touchscreen :
Program the Lock
A master entry code is used to change the lock settings. A security best practice is to set your master entry code with 6 or more digits. To set the master entry code:
- Wake up the lock by placing the back of your hand on the touchscreen.
- Enter master entry code and press the gear key to continue.
- Enter your 4-8 digit master entry code, then press the gear key.
Your master entry code has now been created. It is important to remember the master entry code in the event that you need to reprogram the lock in the future.
Create Entry Codes
A master entry code must be created before creating any other entry codes.
- Wake up the lock by placing the back of your hand on the touchscreen.
- First, enter the master entry code and press the gear key.
- Press 2, then press the gear key.
- Press 1, then press the gear key.
- Enter a 4-8 digit user enrty code, then press the gear key.
Add more user codes by pressing the gear key, entering the 4-8 digit entry code, and then the gear key a second time. To exit the programming menu, press the check mark.
We recommend a separate user entry code for everyday use instead of using your master entry code to unlock your door.
Deleting Entry Codes
If you wish to delete an entry code from the lock:
- Enter the master entry code and press the gear key.
- Press 2, then press the gear key.
- Press 3, then press the gear key.
To delete one entry code:
- Enter the entry code you wish to delete, and press the gear key
To delete all entry codes, except the Master entry code:
- Press 0 0, then press the gear key twice
To unlock the door using an entry code:
- Press any key to wake up the lock.
- Enter the entry code and press the checkmark.
Installation FAQ
What tools are needed to install the Yale® Assure Lock® for Andersen Patio ?
The following tools are needed to complete installation:
- Drill
- Phillips head screwdriver
- Scissors
- Drill bits:
- 1/8"
- 5/16"
- 3/8" or 1/2"
What size hole needs to be drilled through the door when installing the Yale Assure lock?
Only one hole needs to be drilled entirely through the door panel and it follows an already existing hole. The top mounting hole for the trimset escutcheon plates needs to be opened to 3/8” or 1/2". The choice in size is based on available drill bits to the customer. A 1/2" hole makes it easier to get the cables through the door panel but is not common in most drill bit sets.
When being used, what direction does the door position sensor need be on the Yale® Assure Lock® for Andersen Patio?
The tab portion of the door position sensor that extends past the escutcheon plate of the Yale Assure lock must be toward the latch of the door panel.
Will the door position sensor on the Yale® Assure Lock® for Andersen Patio work with the existing magnet of a door that had a previously installed VeriLock sensor?
Yes, the door position sensor on Yale® Assure Lock® for Andersen Patio uses the same magnets and mounting positions as the patio door VeriLock sensors.
What lock actuator spacer should I use when installing the Yale® Assure Lock® for Andersen Patio?
Review the table below:
What side of the Yale Assure lock mounting plate is the lock actuator spacer installed on?
The lock actuator spacer is installed on the Yale Assure lock mounting plate on the side of the plate with the gasket and must be between the bracket and the lock actuator.
